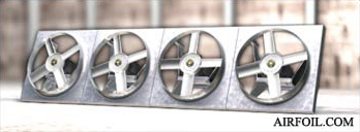

Hot-Dip Galvanized Direct Drive Panel Fans

Airfoil Impellers panel fans are designed for years of trouble-free, heavy-duty service. Intended for industrial use, our panel fans are recommended for heat transfer devices, processing equipment, blast freezers, and general ventilation.

Highly efficient air performance is achieved leveraging our cast aluminum airfoil fan blades, available in standard diameters from 18" to 60", with custom diameters up to 96". The panel incorporates a one-piece, deep spun orifice for optimal air delivery, and comes standard with a NEMA frame motor mount. Featuring solid weld construction, with corner support gussets for added stability and low vibration operation, our panel fans can be mounted in horizontal and vertical positions.

Standard housings are fabricated using steel, but are also available in aluminum and stainless steel construction. Additionally, steel housings come standard with an enamel finish, with optional epoxy and hot dip galvanized finishes available.

Specifications
Applications:
·  Blast Freezing
·  Cold Storage
·  Equipment Cooling
·  Food Processing
·  General Ventilation
·  Heat Transfer
·  Personnel Cooling
·  Product Cooling
Housing Material Options:
·  Steel (Enamel Finish)
·  Steel (Epoxy Finish)
·  Steel (Hot-Dip Galvanized)
·  Aluminum
·  Stainless Steel
Drive Mechanism:
·  Belt Drive
·  Direct Drive
Features:
·  Continuous Welded Housing
·  NEMA T-Frame Motor Mount
Options:
·  Motor Guard
·  Low Temperature Grease

Cut Sheet
Panel Fan Cut Sheet To view or print model specifications,
download the product cut sheet.
